Description

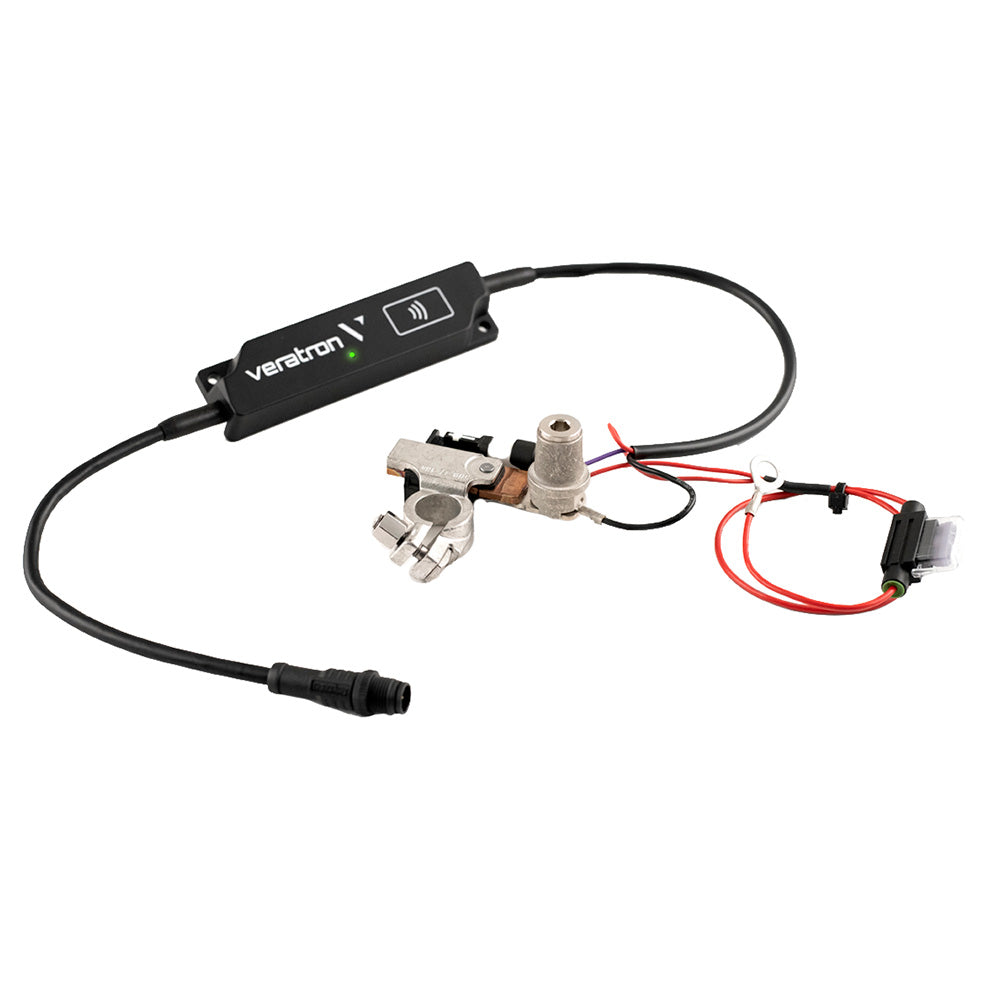

LinkUp Intelligent Battery Sensor Gateway - 12V - 500AH
Easily installed LinkUp gateway modules replace the original wiring, delivering power to the LinkUp device and sensor from the NMEA 2000 backbone while still compliant with the NMEA 2000 certification. Thanks to their passive wireless receiver, the configuration is done in a snap using your mobile device, and the LinkUp Configurator app is available for Android and iOS devices. The sensor parameters are configured to type, instance, and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download.
Features:
- NMEA 2000® certified
- Wireless configuration through companion mobile App
- Status LED
- Plug-and-Play installation and configuration
Specifications:
- Operating voltage - 6-18V
- Permanent load current - ±200A
- Maximum current - ±1500A
- Maximum battery capacity - 500Ah
- Threaded GND bolt - M6
- Power consumption - ≤ 15 mA (normal mode)
- Output signal - NMEA 2000®
- Dimensions - 125mm x 32mm (+cables)
- Protection class - IP X9/K (LinkUp) IP6K7 (Sensor)
- Operating temperature - -40°C to +115 °C
- Flammability - UL94
- Housing material - PC-FR
- Compliance - CE, UKCA, Reach, RoHS, ISO8846:1990
Quick Guide (pdf)
Owner's Manual (pdf)
