Docking

Inside Corner - this heavy-duty inside corner should be used with one of the outside corners. Each leg has elongated holes for easy fit-up and is 8...

Outside Corner (Female) - Has two 1/2" welded tabs. Use with a male outside corner. Each leg is 10" L X 5" H.

Connector Pin Set - for quick disconnect. Used to connect male and female connectors. Galvanized 3/4" connector pin and hitch clip pin.

Outside Corner End - use this corner at ends of fingers and docks. Ideal for swim floats and ski jump corners. Each leg is 10".

For use as a pile holder with 3/8" galvanized chain and shackles. Can be adjusted for various pile diameters. 20-1/4" x 4-1/4"x 4-1/4"x 1/4" Steel ...

Washer Plate - use two washer plates with each angle. Measures 1-1/2" L X 5" H.

Carriage Bolt Set - used to attach A thru K Component parts. 3/8" X 2-1/2" bolt, flat washer and nut. Hot dipped galvanized. Commercial Grade 1/2" ...

Male T Connector - has one welded 1/2" tab. Use with female T connector to attach fingers and ramps. Measures 5" L X 5" H. 3/4" bolt set (N) requir...

Female T Connector - has two welded 1/2" tabs. Bolts to side of dock to attach fingers and ramps. 5"L X 5" H.

Angle - use this heavy duty angle for all cross supports. Each leg measures 2-1/2" L X 5" H.

Outside Corner (Male) - has one 1/2" welded tab. Use with a female outside corner to connect docks end to end. Joint requires 3/4" bolt set (N) or ...

20-1/4" x 4-1/4" x 4-1/4" x 1/4" Steel Commercial Grade

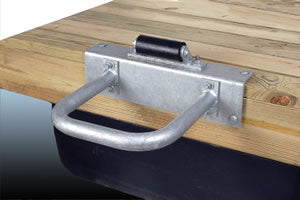

Intended for areas with lots of wind, current, or tidal action. Combines the Piling Hoop and Roller Assembly to make up and down movement easier. F...

Bracket and roller bolt directly to the Deck Plate (Model 26416) and can be added to aid up-and-down motion of the dock in areas with tidal action....

For pilings up to 12" in diameter. The hoop is constructed of 1-1/2" pipe and is hot dip galvanized. It can be bolted directly to the side of the d...

Lag Bolt Set - bolt and flat washer hot dipped galvanized used to attach flotation drums to dock system. 3/8" x 3"

Pipe Holder - Outside 3" - bolts to outside of dock. Carriage bolt set (M) required for attaching. Use 2" pipe to hold dock in place.
