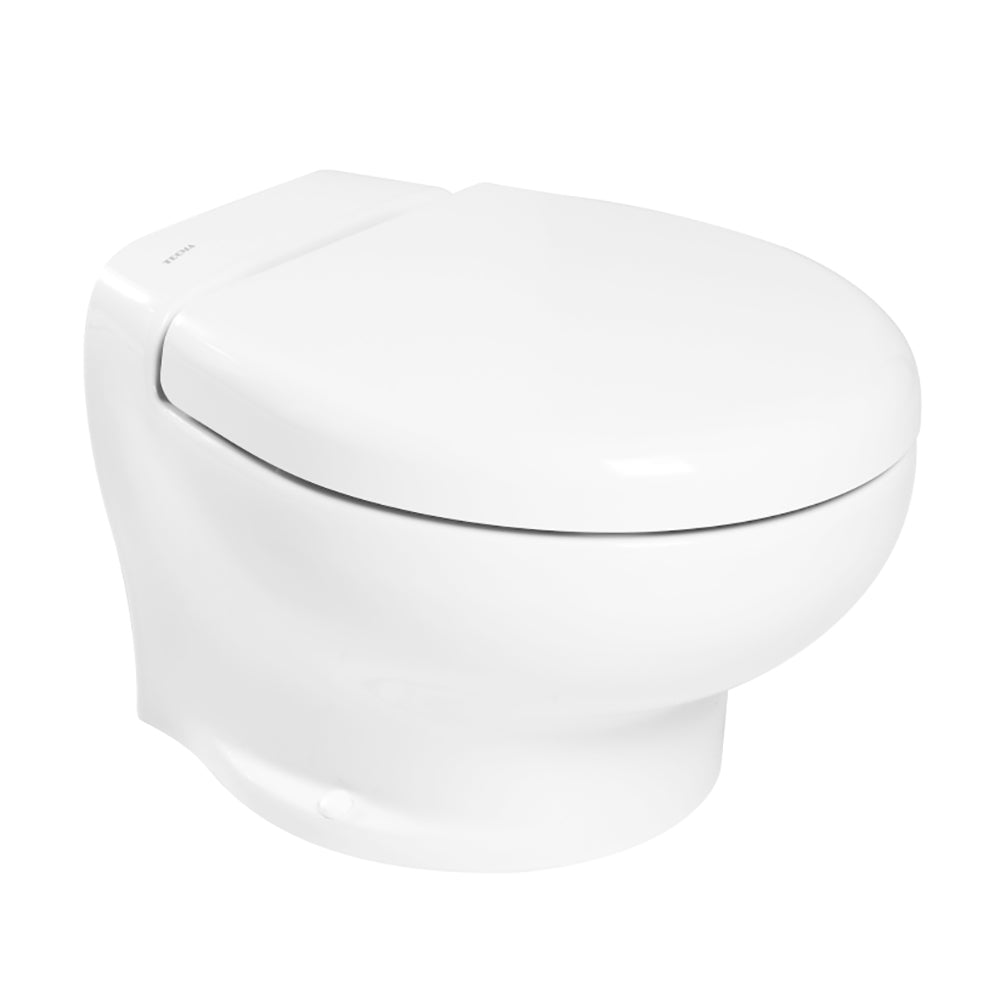

Thetford Nano Premium Plus Compact Toilet - 24V [T-NAN024PW/TSFT/NA]
Nano Premium Plus Compact Toilet - 24V
The Tiny Turbo Toilet!
From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable to offer the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). Thetford Marine product development team has created a design that is extremely elegant, but also very flexible to install, thanks its compact size.
- Uses 2 check valves and this combined with a water trap ensures there are no odor issues
- Incredibly quiet operation
- Can use both raw water and pressure water flush
- Leaves a clean, dry bowl after every powerful flush
- User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features
- Material - Italian ceramic
- Flush Rate - 0.1-0.7 gallons per flush
- Outlet pump recommended fuse - 20A
- Outlet pump performance - 13.1ft vertical suction, 131.2ft horizontal suction
- Inlet solenoid (fresh water) power consumption - 10W
- Inlet pump (raw water) fuse - 4A
- Inlet pump (raw water) pressure - 45 PSI
In the Box:
- 1 - 24v Tecma Nano toilet
- 1 - Wall switch and controller
- 1 - Black wall switch bezel
- 1 - Bone wall switch bezel
- 2 - 1/4 10 x 2.5” stainless steel lag screws
- 2 - 1/4” stainless steel washer
- 2 - Plastic washers
- 2 - Bolt caps
- 2 - Hose clamps – 1 1/4”- 2”, stainless
- 1 - Full tank sensor
- 1 - Lower Discharge Check Valve (with straight and elbow fittings)
- 1 - Installation/Owner's Manual
- Color: White
- Gallons Per Minute: 3 GPM
- Inlet Size: 1/2"
- Operation Method: Electric
- Outlet Size: 1.5"
- Rinse Water: Raw/Fresh
- Size: Compact Size
- Suction Lift (ft.): 13'
- Type: Toilet
- Volts: 24v
