Sea-Dog Bilge Pump Water Alarm Panel w/Switch [423037-1]

by Sea-Dog
SKU CW-100303

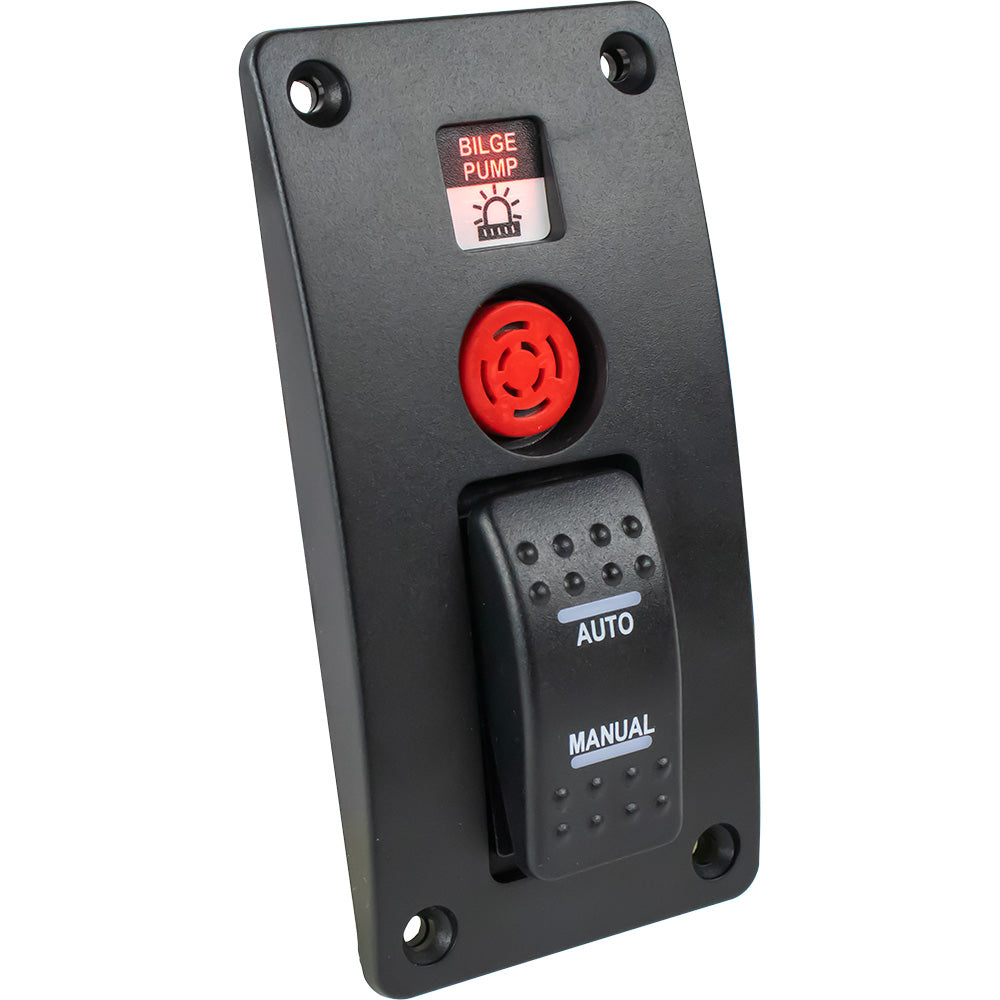

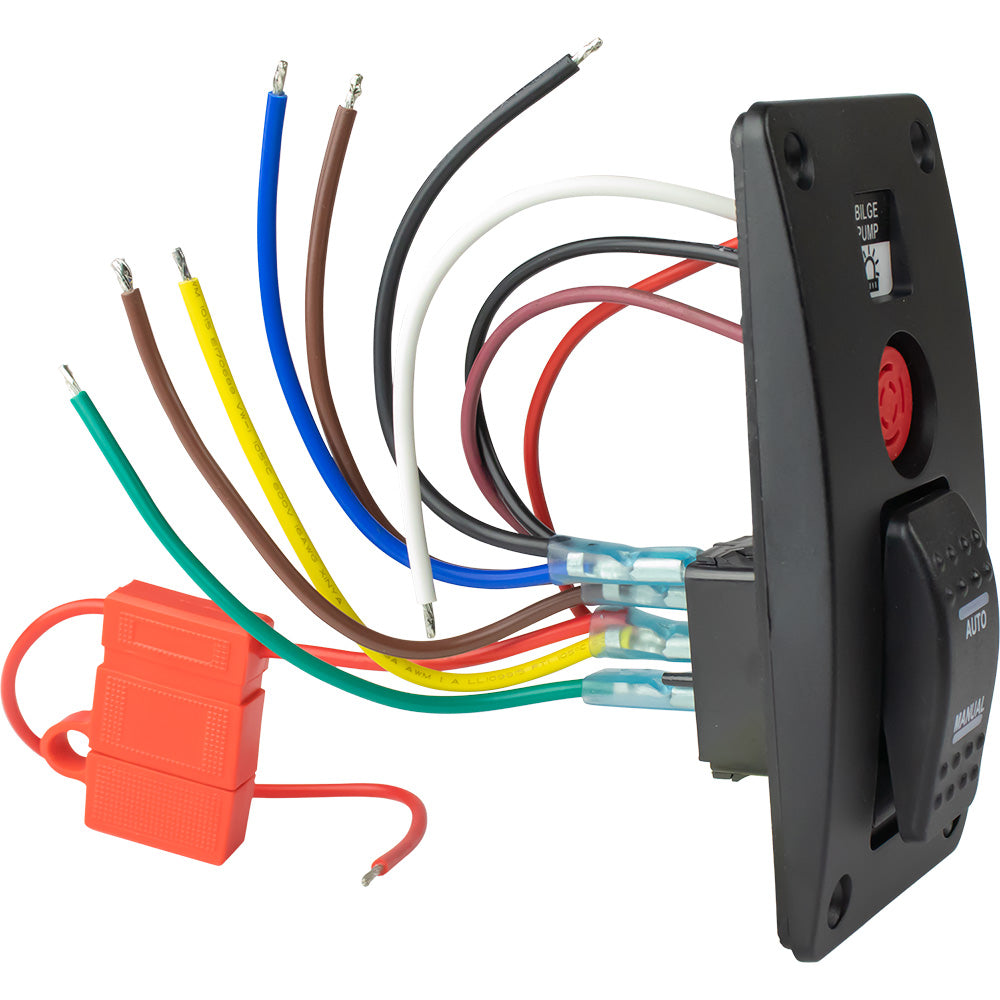

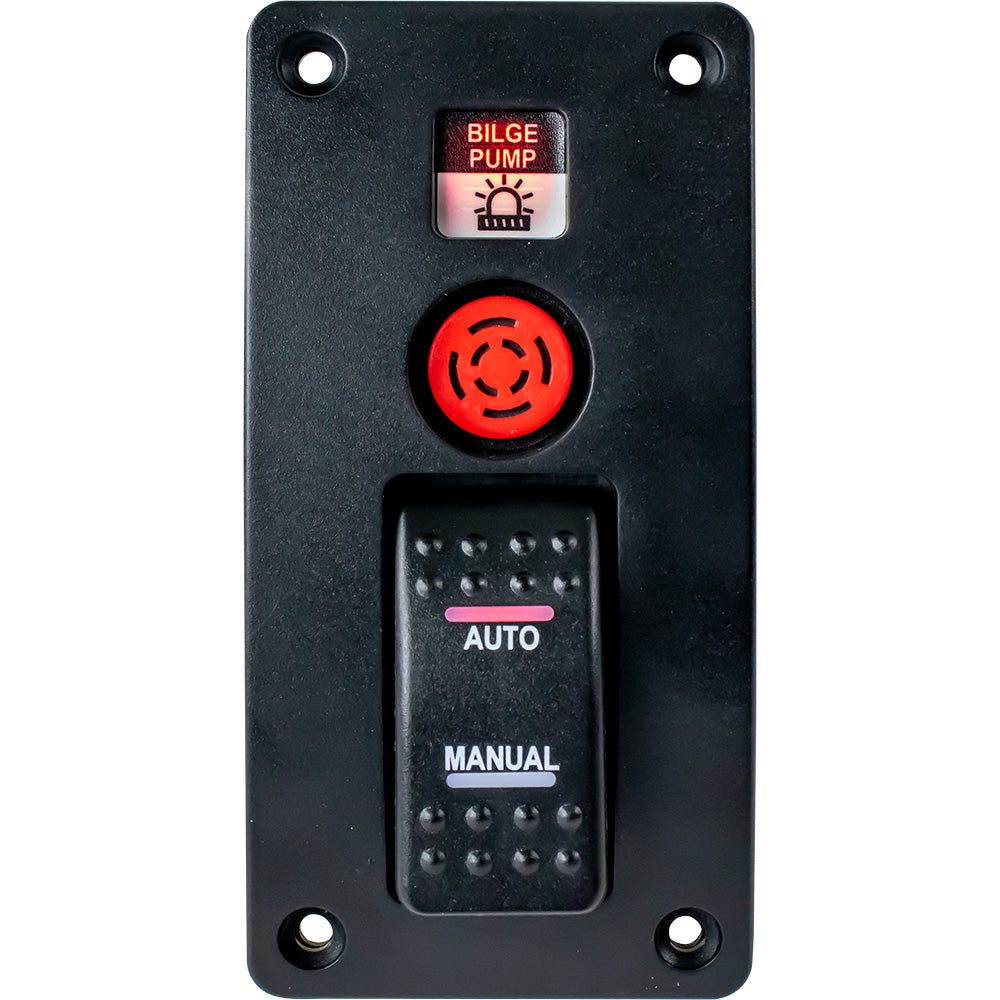

Bilge Pump Water Alarm Panel with Switch

This bilge pump water alarm panel with a switch provides both an audible and visual means of warning that the water level in your bilge is above your bilge pump float switch level. There is no need for a separate bilge pump switch, as the control switch selects between the automatic and manual (momentary on) functions of the bilge pump.


  • 20A fuse holder
  • Constructed of injection molded ABS
  • Installs with a gasket and four RH fasteners (included)
  • Specifications:
  • Length (inch): 4-11/16"
  • Width (inch): 2-3/8"
  • Width Between Fasteners (inch): 1-1/2"
  • Length Between Fasteners (inch): 3-7/8"
  • Volts: 12
  • Weight: 0.33 lb.
  • Color: Black

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to


  • Color: Black
  • Box Dimensions: 3"H x 4"W x 7"L WT: 0.4 lbs
  • UPC: 035514423878
