Samlex Solar Charge Controller - 12/24 PWM - 30 AMP [EVO-30AB]

Sold out
$119.70
SKU CW-101610

Solar Charge Controller - 12/24 PWM - 30 AMP

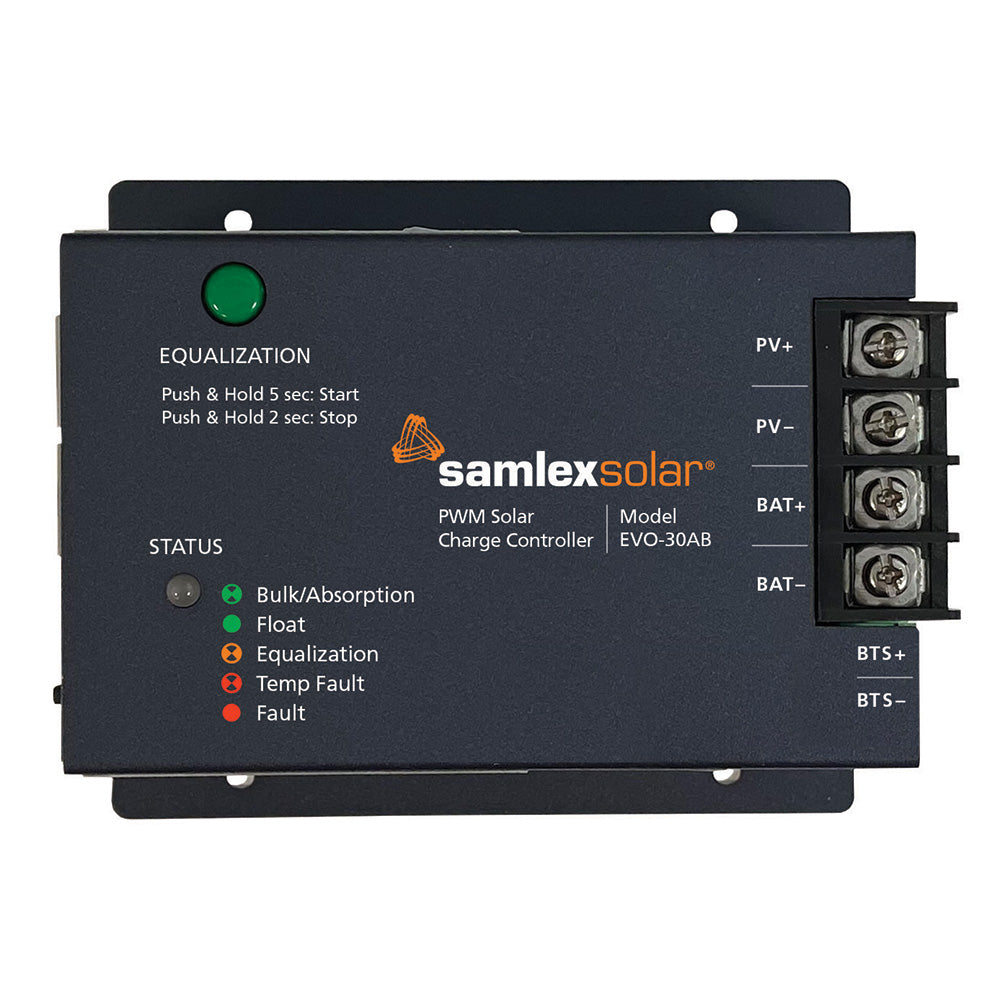

Use the Samlex EVO-30AB Charge Controller as a stand-alone 30 amp solar charge controller or expand the functionality of the EVO-RC-PLUS as the central display for both your EVO inverter/charger and your solar system.

Features:

  • When connected to the EVO™ inverter/charger, the EVO-30AB will follow the programming set in the unit.
  • Add the EVO-RC-PLUS and it will display the status for both the EVO™ inverter/charger and solar system from ONE remote display
  • Compatible with most battery types including Lead Acid and Lithium-Ion (LiFePO4) batteries.
  • Manage multiple panels up to 600W in a 12V system, or up to 1000W in a 24V system under specified conditions

Additional Features:

  • Optional 30AB-TS Battery Temperature Sensor available.
  • 30 Amp charging capacity
  • 8 charge settings for different batteries
  • Selectable battery equalization option
  • Use with 12/24V batteries
  • Compatible with EVO-RC-PLUS Remote Display (Optional)
  • Increased functionality when used with an EVO™ Series Inverter/Charger

Specifications:

  • Input: 12V / 24V
  • Amps: 30 Amp
  • Weight: 0.8 (lbs)
  • Weight: 0.36 (kg)
  • Dimensions: 4.81 x 1.87 x 4.15 (in)
  • Dimensions: 12.21 x 4.75 x 10.54 (cm)

Applications:

  • Recreation vehicles
  • Service vehicles
  • Boats
  • Fieldwork
  • Telecommunications
  • Mobile offices
  • Construction sites

Quick Guide (pdf)
Owner's Manual (pdf)
